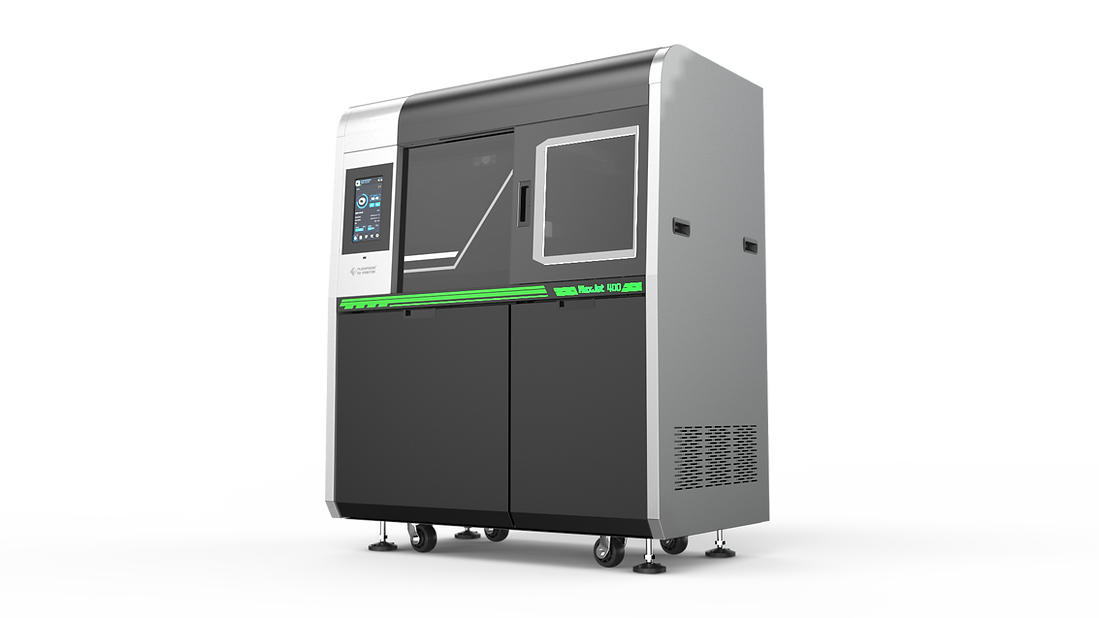

FLASH FORGE - WAX JET 400/410

WaxJet 400/410 series adopts multijet printing technology in order to get smooth surface finishing. Designed with casting in mind, the printer uses wax based material and has a large print bed allowing customers to easily print and cast complicated designs with ease .

DIRECTLY
CASTABLE
MATERIAL

CASTING
PARAMETERS

SAME AS WAX

AUTO
SUPPORT

GENERATION

INCREASED
PRODUCTION
OUTPUT

EASY

SUPPORT

REMOVAL

PRINT
COMPLEX
DESIGNS

The Flashforge Solution for Digitized Mass Production
includes four modules:

1

The Design Studio
A desktop scanner + A slicing software
+ A manage software for a group of printers

3

Post-process Workshop
A heating platform + A support removing
device + Support material dissolved
solvent + Tools

2

3D printer + A transformer
3D Printing Workshop
+ LAN network

4

After-sales Service
The professional distributors and the
high quality of after-sales service ensure
the stable operation of the production
workshop.

1

Prepare the model data Jewelry designers to make hand-drawings according to customers' needs, and then draw three-dimensional models.

2

Send the model data to the
printer Edit several models on the build plate and submit the models to the printer for printing.

3

Start printing click the screen to print and the printing will be automatically completed with no need of manpower during the process.

KEY ADVANTAGES OF FLASHFORGE SOFTWARE

Select printing accuracy.JPG

Selecting your printing preferences

Easily select the printing resolution based on your requirements, with the Z-axis layer resolution of 16 microns per layer and an overall resolution of 1200 x 1200 x 1600 DPI.

Special supporting structure.JPG

Special Supporting Structure & Material

Print your products without having to worry about putting supports on your designs. No more calculating and designing various support features to ensure that your product is printed correctly. The multi-prism supporting structure not only dissolves easily in the solution but now also gets shorter times in the dewaxing process.


TECHNICAL SPECIFICATIONS

Parametes               FlashForge - 400             FlashForge - 410

Molding Method
Molding Size
Printing Mode

No. of Print Head's
Dimensional Accuracy*
Power Supply
Device Size
N.W.
G.W.
Package Size
Slicing Software
Data Support Format
E-mail Notify
Disk Capacity
Network Connection
Guest Operating System
Operating Environment
* Pcs / Day
*1 Full Tray printing time

MJP
289*218*150mm
XHD : 1200*1200*1600
DPI : 16u of each layer
3 - Print Heads
0.04mm / 20mm
220-240VAC, 50Hz, 4KW
1352*775*1600mm
480kg
630kg
1530*900*1837mm
WaxJetPrint
stl / slc
Applicable
500G
Network 10/100/1000 ethernet / USB
Windows 7/ Windows 10 (64bit)
18-28*C, 30-70% of humidity
*350 - 400 pcs / day
8 Hrs : 30 Mins

MJP
289*218*150mm
XHD : 1200*1200*1600
DPI : 16u of each layer
3 - Print Heads
0.04mm / 20mm
220-240VAC, 50Hz, 4KW
1352*775*1600mm
480kg
630kg
1530*900*1837mm
WaxJetPrint
stl / slc
Applicable
500G
Network 10/100/1000 ethernet / USB
Windows 7/ Windows 10 (64bit)
18-28*C, 30-70% of humidity
*170 - 200 pcs / day
20 Hrs : 30 Mins


* All printing details have been provided based on the model represented on the left side.
